Wednesday, July 29, 2015

RCF L10-750YK


RCF L10-750YK

Specifications: Size: 10"
Power Rating: 700W RMS
Frequency Response: 70-3kHz
Sensitivity: 100db
Impedance: 8 ohms
Voice Coil: 3"

RCF L12L750


Bass/Mid-Bass Speaker


Specifications: Size: 12"
Power Rating: 700W RMS
Frequency Response: 60-2kHz

Tuesday, July 28, 2015

RCF L15X400 Woofer



Size:
15"
Power Rating
: 800W AES
Frequency Response: 30
Hz - 1.5kHz
Sensitivity: 97 db
Impedance: 8 ohms
Voice Coil: 4" fiberglass inside/outside copper voice coil

Resonant Frequency: 37Hz
Weight: 30 lbs.


The L15X400 is the RCF classical high efficiency 15" woofer. A perfect blend of voice coil length, moving mass weight and suspensions control makes this transducer the preferred solution for many speakers and rental companies. Voice coil construction, suspension and cone materials are upgrade in order to withstand up to 800 watt RMS power.

Applications
The L15X400 finds its best application in band pass, reflex-horn and horn loaded system. It is a perfect compact bass reflex solution for live music, when the maximum punch is required. It is one of the fastest transducers in its category.

RCF L15S801 Woofer



Size:
15"
Power Rating
: 700W AES
Frequency Response: 40
Hz - 1.5kHz
Sensitivity: 99.5 db
Impedance: 8 ohms
Voice Coil: 4" fiberglass inside/outside copper voice coil

Resonant Frequency: 48Hz
Weight: 29 lbs.


The L15S801 is the RCF classical high efficiency 15" woofer. A perfect blend of voice coil length, moving mass weight and suspensions control makes this transducer the preferred solution for many speakers and rental companies. Voice coil construction, suspension and cone materials are upgrade in order to withstand up to 700 watt RMS power.

Applications
The L15S801 finds its best application in band pass, reflex-horn and horn loaded system. It is a perfect compact bass reflex solution for live music, when the maximum punch is required. It is one of the fastest transducers in its category.

RCF L15P540 Woofer



Size:
15"
Power Rating
: 500W AES
Frequency Response: 40
Hz - 2kHz
Sensitivity: 98 db
Impedance: 8 ohms
Voice Coil: 3" fiberglass inside/outside copper voice coil

Resonant Frequency: 50Hz
Weight: 23 lbs.


High power 15" woofer. Very good power handling, excellent linearity and very low distortion. Very efficient heat dissipation in ensured by a radiator that is part of the basket design. The air is forced in the radiator thanks to a dual sealed spider design.

Applications
The excellent linear response, well controlled down to 40 Hz, makes the L15P540 especially suitable for horn-loaded applications, band-pass enclousures and small size bass reflex systems. It is a very good solution for two or three way system when a very high BL and maximum punch is required.

LF18N401 Neodymium Subwoofer


Size: 18"
Power Rating
: 1200 Watts AES
Frequency Response: 30-1kHz
Sensitivity: 98db
Impedance: 8 ohms
Voice Coil: 4" copper
Resonant Frequency: RCF Hz
Weight: 23 lbs.



Incredibly linear frequency response characteristics,the highest power handling of any comparable 18-inch neodymium transducer, the lowest power compression.
The LF18N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround.

This combination provides remarkable strength venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.

LF18X400 Subwoofer


Size: 18"
Power Rating
: 1000W AES
Frequency Response: 25-1kHzSensitivity: 97.5dbImpedance: 8 ohmsVoice Coil: 4" copperResonant Frequency: 28 HzWeight: 29.3 lbs.

Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range.

The LF18X400 uses a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround. A
fully optimised T-pole design generate the minimum amount of flux modulation. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.

RCF L18P400 Subwoofer


Size: 18"
Power Rating
: 1000W AES
Frequency Response: 25-1kHz
Sensitivity: 97.5db
Impedance: 8 ohms
Voice Coil: 4" copper
Resonant Frequency: 39 Hz
Weight: 29 lbs.


Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range.

The L18P400 uses a fiber loaded cone assembly along with a high excursion triple roll,constant geometry surround.

A fully optimized T-pole design generate the minimum amount of flux modulation.
The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits.Forced air venting system.

L18P300ND Neodymium Subwoofer


Light Weight Alternative to the L18P300
Size: 18"
Power Rating
: 1000W AES
Frequency Response: 35-1kHzSensitivity: 97db
Impedance: 8 ohms
Voice Coil: 4" copperResonant Frequency: 33 HzWeight: 6.5 lbs.

The L18P300ND is derived from L18P300 and manufactured with a newly designed Neodymium magnet that provides improved ventilation under the top plate. This new model is perfectly compatible with the ferrite version both in size and performance but with a much reduced weight.

The neo magnetic assemblies use 15mm thickness plates that ensure a high flux density in the gap, low power compression and excellent heat dissipation. A specially designed M-roll suspension combined with a double silicon spider ensure an excellent linear piston control and undistorted low frequency reproduction at very high power. The voice coil is constructed using a fiberglass former treated with high temperature resin adhesives while the coil is wound in inside/outside typology to provide a very high thermal stability and durability at high power levels.

Specifications: 4-inch, fiberglass inside-outside copper voice coil; 2000W continuous program power handling; 97dB Sensitivity; 35Hz -1KHz Frequency range; Forced air ventilation and 15mm top plate for minimum power compression; Dual spider design with silicon based dampening control; M-roll surround and exponential cone geometry; Neo magnetic assembly.

The net weight of L18P300ND is half of the ferrite version. Push buttons are easier to use; Larger fixing holes; Improved ventilation under the top plate; Smaller overall diameter for easier installation.

RCF L18P300


18" 1000 WATT CAST

In production for over 10 years, the L18P300 is an industry standard.

The very strong magnetic unit, with 15mm thick plates and specially designed suspensions ensure an excellent control of amplitude of over +/- 12millimeters. The special cooling system with forced air ventilation offer a great heat dissipation and the minimum levels of power compression available on the market.

Voice coil construction, suspensions and cone materials are upgraded in order to withstand up to a Kilowatt RMS power.

RCF L18P200 Subwoofer



Size:
18"
Power Rating
: 800W AES
Frequency Response:
27Hz - 1kHz
Sensitivity: 96 db
Impedance: 8 ohms
Voice Coil: 4"
Kapton former copper voice coil
Resonant Frequency: 28Hz
Weight: 29.1 lbs.


The L18P200 is the RCF classic extended low frequency 18" woofer. Generous voice coil length, heavier moving mass weight and very low resonance for perfect low frequency reproduction. Remarkable the linearity in the application range. Special treatments are applied to cone surface and surround for optimum dampening.

Applications
The L18P200N finds its best application in bass reflex enclosures. It is a perfect solution for recorded music, cinema subwoofers, very low frequency monitoring and applications where very low frequency linearity is required.

RCF L18S801 Subwoofer


Size: 18"
Power Rating
: 700 Watts AES
Frequency Response: 38-1kHzSensitivity: 99.5dbImpedance: 8 ohmsVoice Coil: 4" copperResonant Frequency: 39 HzWeight: 30.7 lbs.

The L18S801 is the RCF classical high efficiency 18" woofer.

A perfect blend of voice coil length, moving mass weight and suspensions control makes this transducer the preferred solution for many speakers and rental companies.
Voice coil construction, suspension and cone materials are upgrade in order to withstand up to 700 watt RMS power.

P Audio C12-500MB v2 12" Speaker


  • 4" Large Format Voice Coil
  • 2000 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Precision Rectangular Ribbon Wire Geometry
  • Die Cast Aluminum Chassis

The P Audio C12-500MB is a high performance wide bandwidth transducer.
The C12-500MB is an upgraded design that features many of P Audio's new
technologies and performance upgrades. The 12 inch (305mm) diameter
piston will produce extremely high sound pressure levels in the mid band
and upper mid frequencies and is ideal for high level response in both live
sound and recorded music venues. The transducer uses high energy ferrite
magnetics to achieve a very high acoustic output to weight ratio. The
C12-500MB has been optimized for use in two way or three way sound
reinforcement systems. The transducer is also ideal as a mid bass driver
for ultra high performance system designs and has an operating bandwidth
of 60Hz to 3000Hz.

The C12-500MB features a very large 4 inch (101.6mm) diameter voice coil
that provides an AES rated 500 watts of continuous power handling and a
full 2000 watts of peak rated power handling when sufficient amplifier
headroom is available. The C12-500MB utilizes P Audio's Auto Balanced
Cooling (ABC) technology to not only improve transducer power handling
and reliability but to also increase power compression performance by
carefully balancing and directing airflow to critical areas.

The voice coil design is a bobbin wound geometry with P Audio's inside/
outside rectangular wire technology to improve conversion efficiency and
provide a large cross-sectional area for superior cooling.

SD15-1700EL 15" Subwoofer Speaker



  • 4.5" Very Large Format Voice Coil
  • 6800 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Square Wire Inside/Outside Coil Design
  • Double Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

The SD15-1700EL is a high output wide bandwidth transducer. The 15 inch
(381mm) diameter piston will produce extremely high sound pressure levels
at both low and mid band frequencies and is ideal for high level low frequency
response in two and three way systems. This design is an excellent component
for both live sound and recorded music venues. The transducer uses high
energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
The SD15-1700EL has been optimized for use in two and three way sound
reinforcement system designs. The operating bandwidth is 55Hz to 2000Hz.

The SD15-1700EL employs a very large 4.5 inch (114.3mm) diameter voice
coil that provides an AES rated 1700 watts of continuous power handling
and a full 6800 watts of peak rated power handling when sufficient amplifier
headroom is available. The SD15-1700EL utilizes P Audio's Auto Balanced-
Cooling (ABC) technology to not only improve transducer power handling
and reliability but to also increase power compression performance by carefully
balancing and directing airflow to critical areas.

The voice coil design is an "inside/outside" geometry with P Audio's square
wire technology to improve conversion efficiency and provide a very large
cross-sectional area for superior cooling.

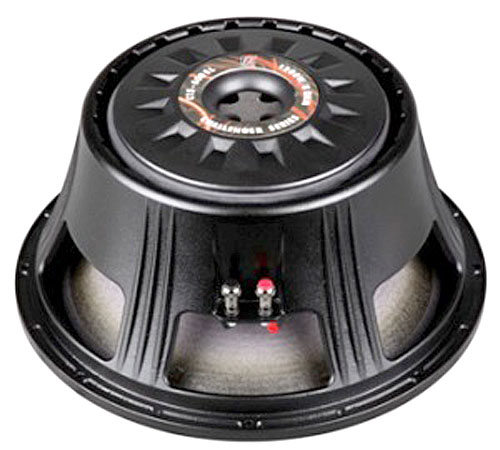

P Audio C15-600EL v2 15" Subwoofer Speaker



  • 4" Large FormatVoice Coil
  • 4800 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Precision Rectangular Ribbon Wire
  • Double Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis
The P Audio C15-600EL is a high output wide bandwidth transducer. The
C15-600EL is an upgraded design that features many of P Audio's new
technologies and performance upgrades. The 15 inch (381mm) diameter
piston will produce extremely high sound pressure levels at both low and
mid band frequencies and is ideal for high level response in both live sound
and recorded music venues. The transducer uses high energy ferrite
magnetics to achieve a very high acoustic output to weight ratio. The
C15-600EL has been optimized for use in two way or three way sound
reinforcement systems and has a rated operating range of 55Hz to 2000Hz.

The C15-600EL employs a large 4 inch (101.6mm) diameter voice coil that
provides an AES rated 1200 watts of continuous power handling and a full
4800 watts of peak rated power handling when sufficient amplifier headroom
is available. The C15-600EL utilizes P Audi's Auto Balanced Cooling (ABC)
technology to not only improve transducer power handling and reliability but
to also increase power compression performance by carefully balancing and
directing airflow to critical areas.

The voice coil design is a bobbin wound geometry with P Audio's rectangular
wire technology to improve conversion efficiency and provide a large crosssectional
area for superior cooling.

P Audio SD15-1700N



 High Output Neodymium 15" Woofer

Size: 15"
Power Rating: 1700W AES
Freq. Response: 55-2kHz
Sensitivity: 96db
Impedance: 8 ohms
Voice Coil: 4.5" edge wound
Resonant Frequency: 57 Hz
Magnet Weight: 25.5 oz. neodymium

The SD15-1700N is a high output wide bandwidth transducer. The 15 inch(381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level low frequency and full range response. This design is optimized for both live sound and recorded music venues.
The transducer uses high energy neodymium magnetics to achieve a very high acoustic output to weight ratio. The SD15-1700N has been optimized for use in two and three way sound reinforcement system designs. The operating bandwidth is 55Hz to 2000Hz. The SD15-1700N employs a large 4.5 inch (114.3mm) diameter voice coil that provides an AES rated 1700 watts of continuous power handling and a full 6800 watts of peak rated power handling when sufficient amplifier headroom is available.

The SD15-1700N utilizes P Audio's Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas. The voice coil design is an inside/outside geometry with P Audio's precision flat wire technology to improve conversion efficiency and provide a very large cross-sectional area for superior cooling. System linearity is achieved by employing magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy.

The system suspension has been designed specifically for high linear displacement for both low frequency and mid band response. The double spider design insures very high displacement and linear response while maintaining excellent control. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.

P Audio E15-350N


Size: 15"
Power Rating
: 300W RMS
Frequency Response: 30-4kHz
Sensitivity: 98db
Impedance: 8 ohm
Voice Coil: 2.5
Resonant Frequency: 37.1 Hz
Frame: Stamped steel
Magnet: 3.9 oz. Neodymium

P Audio C15-300MB

Size: 15"
Power Rating
: 300W RMS
Frequency Response: 35-3.2kHz
Sensitivity: 98.6db
Impedance: 8 ohm
Voice Coil: 3" edge wound
Resonant Frequency: 41 Hz
Frame: Cast aluminum

P Audio SD18


18" High Output Heavy Duty Subwoofer

Power Rating: 600W RMS



Frequency Response: 30-1.5kHz
Sensitivity: 98db
Impedance: 8 ohms
Voice Coil: 4.5" edge wound
Resonant Frequency: 33 Hz
Weight: 46 lbs.

P Audio P180/2242v2


High Output Subwoofer

Size: 18"
Power Rating: 1,000W AES
Frequency Response: 30-500Hz
Sensitivity: 97db
Impedance: 8 ohms
Voice Coil: 3.9" edge wound
Resonant Frequency: 37 Hz
Magnet Weight: 100.6 oz. Ferrite

The P Audio P180/2242 is a high output low frequency transducer designed
with a vintage voicing. The P180/2242 is an upgraded design that features
many of P Audio's new technologies and performance upgrades. The 18
inch (457mm) diameter piston will produce extremely high sound pressure
levels at very low frequencies and is ideal for high level deep bass and sub
woofer response in both live sound and recorded music venues. The
transducer uses high energy ferrite magnetics to achieve a very high
acoustic output to weight ratio.

The P180/2242 employs a large 3.9 inch (99.3mm) diameter voice coil and
has been upgraded to an AES rated 1000 watts of continuous power
handling and a full 4000 watts of peak rated power handling when sufficient
amplifier headroom is available. The P180/2242 utilizes P Audio's Auto
Balanced Cooling (ABC) technology to not only improve transducer power
handling and reliability but to also increase power compression performance
by carefully balancing and directing airflow to critical areas.

The voice coil design is a bobbin wound geometry with P Audio's rectangular
wire technology to improve conversion efficiency and provide a large crosssectional
area for superior cooling.

The transducer employs magnetic flux demodulation devices in the structure
to increase fidelity and sonic accuracy. The system suspension has been
designed specifically for high linear displacement and extended low
frequency response. The double spider design further enhances system
mechanical control and reliability.

P Audio C18-650EL V2 18" Subwoofer Speaker



  • 4" Large FormatVoice Coil
  • 4800 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Precision Rectangular Ribbon Wire
  • Double Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

The P Audio C18-650EL is a high output low frequency transducer. The
C18-650EL is an upgraded design that features many of P Audio's new
technologies and performance upgrades. The 18 inch (457mm) diameter
piston will produce extremely high sound pressure levels at very low
frequencies and is ideal for high level deep bass and sub woofer response
in both live sound and recorded music venues. The transducer uses high
energy ferrite magnetics to achieve a very high acoustic output to weight ratio.

The C18-650EL employs a large 4 inch (101.6mm) diameter voice coil that
provides an AES rated 1200 watts of continuous power handling and a full
4800 watts of peak rated power handling when sufficient amplifier headroom
is available. The transducer is optimized for use in properly tuned vented
enclosures and will provide maximal reliability when both a vented enclosure
and active high pass filtering are employed. The C18-650EL utilizes P Audio's
Auto Balanced Cooling (ABC) technology to not only improve transducer
power handling and reliability but to also increase power compression
performance by carefully balancing and directing airflow to critical areas.

The voice coil design is a bobbin wound geometry with P Audio's rectangular
wire technology to improve conversion efficiency and provide a large crosssectional
area for superior cooling.

P Audio SD18-1700EL Subwoofer Speaker



  • 4.5" Very Large Format Voice Coil
  • 6800 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Square Wire Inside/Outside Coil Design
  • Double Spider Suspension Integrated Demodulation Rings
  • Die Cast Aluminum Chassis
The SD18-1700EL is a high output low frequency transducer. The 18 inch
(457mm) diameter piston will produce extremely high sound pressure levels
at very low frequencies and is ideal for high level deep bass and sub woofer
response in both live sound and recorded music venues. The operating
range is 30Hz to 200Hz. The transducer uses high energy ferrite magnetics
to achieve a very high acoustic output to weight ratio.

The SD18-1700EL employs a very large 4.5 inch (114.3mm) diameter voice
coil that provides an AES rated 1700 watts of continuous power handling
and a full 6800 watts of peak rated power handling when sufficient amplifier
headroom is available. It is recommended that the transducer be loaded into
a properly designed vented enclosure and that active high order high pass
filtering be employed if extremely high power levels are expected at low
frequencies. The SD18-1700EL utilizes P Audio's Auto Balanced Cooling
(ABC) technology to not only improve transducer power handling and reliability
but to also increase power compression performance by carefully balancing
and directing airflow to critical areas.

The voice coil design is an "inside/outside" geometry with P Audio's square
wire technology to improve conversion efficiency and provide a very large
cross-sectional area for superior cooling.

P Audio SD18-1700N

High Output Neodymium Subwoofer

Size: 18"
Power Rating: 1,700W AES
Frequency Response: 30-200Hz
Sensitivity: 98db
Impedance: 8 ohms
Voice Coil: 4.5" edge wound
Resonant Frequency: 44 Hz
Magnet Weight: 21.9 oz. Neodymium

The SD18-1700N is an very high output low frequency transducer. The 18-inch (457mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The operating range is 30Hz to 200Hz. The transducer uses high energy neodymium magnetics to achieve a very high acoustic output to weight ratio.

The SD18-1700N employs a large 4.5 inch (114.3mm) diameter voice coil that provides an AES rated 1700 watts of continuous power handling and a full 6800 watts of peak rated power handling when sufficient amplifier headroom is available. It is recommended that the transducer be loaded into a properly designed vented enclosure and suitable active high pass filtering be employed if extremely high power levels are expected at low frequencies.The SD18-1700N utilizes P Audio's Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.

P Audio WN-18S

P Audio WN-18S
18" Neodymium SubwooferSize: 18"
Power Rating
: 400W RMS
Freq. Response: 45-3.5kHz
Sensitivity: 97db
Impedance: 8 ohms
Voice Coil: 3" edge-wound copper
Resonant Frequency: 30.8 Hz
Magnet Weight: 7 oz. neodymium
